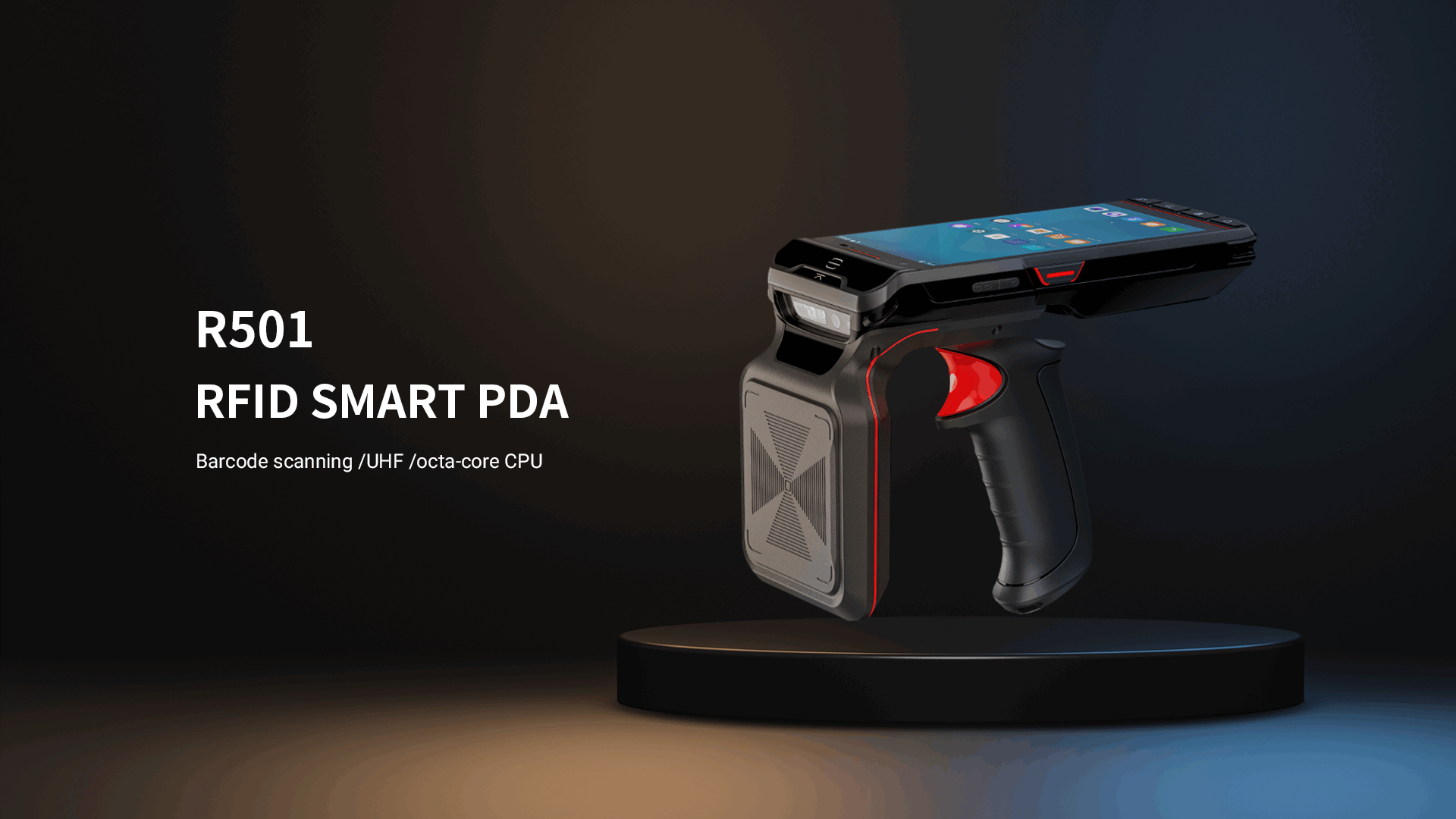

Specifications of the R501
Download
Standard configuration
Operating system
Android 10.0/ Android 13.0
CPU
MT6765X Octa core 64-bit 2.3GHz
RAM+ROM
2GB+16GB
4GB+64GB
Display screen
5.5-inch,720 x 1440
Mobile Network
4G full network
WIFI
Dual-band 2.4GHz/5GHz, supports IEEE 802 a/b/g/n/ac protocol
Bluetooth
Bluetooth 5.0
Interface
Type-C 2.0 USB x 1, supporting OTG function
Dimensions
179mm×74.5mm×150mm

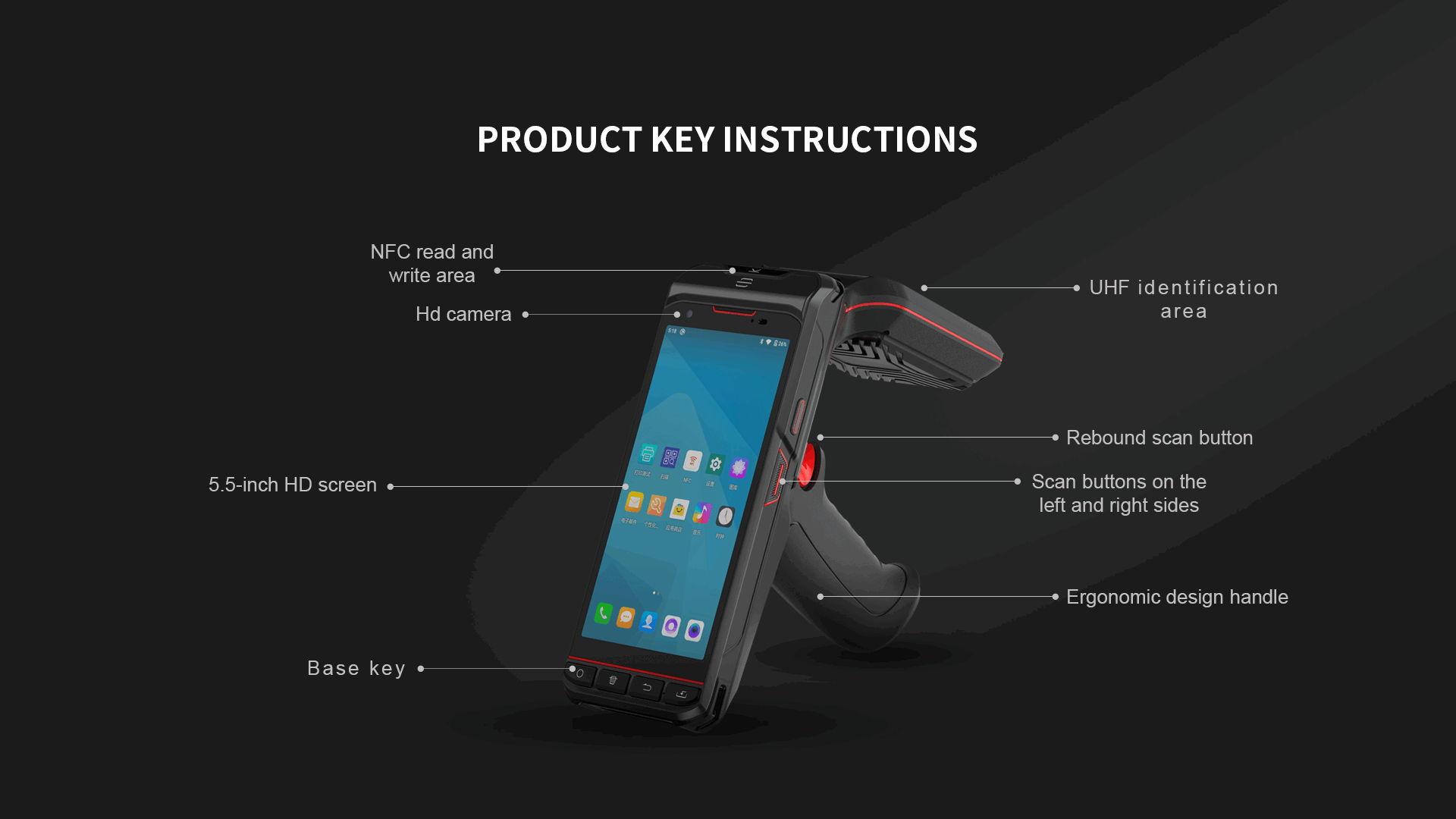

keypad
Silicone keys: Power key, Volume +/- key, Handle
scan key,Scan key ×2
Card Slot
NANO SIM card x1、TF card x1(OptionalPSAMx2)、POGO Pinx1
GNSS
GPS,Galileo, Glonass, Beidou
User Environment
Operating Temp: -20℃ to 55℃
Storage Temp: -40C to 70℃
Battery
7.6V 4000mAh
Sealing

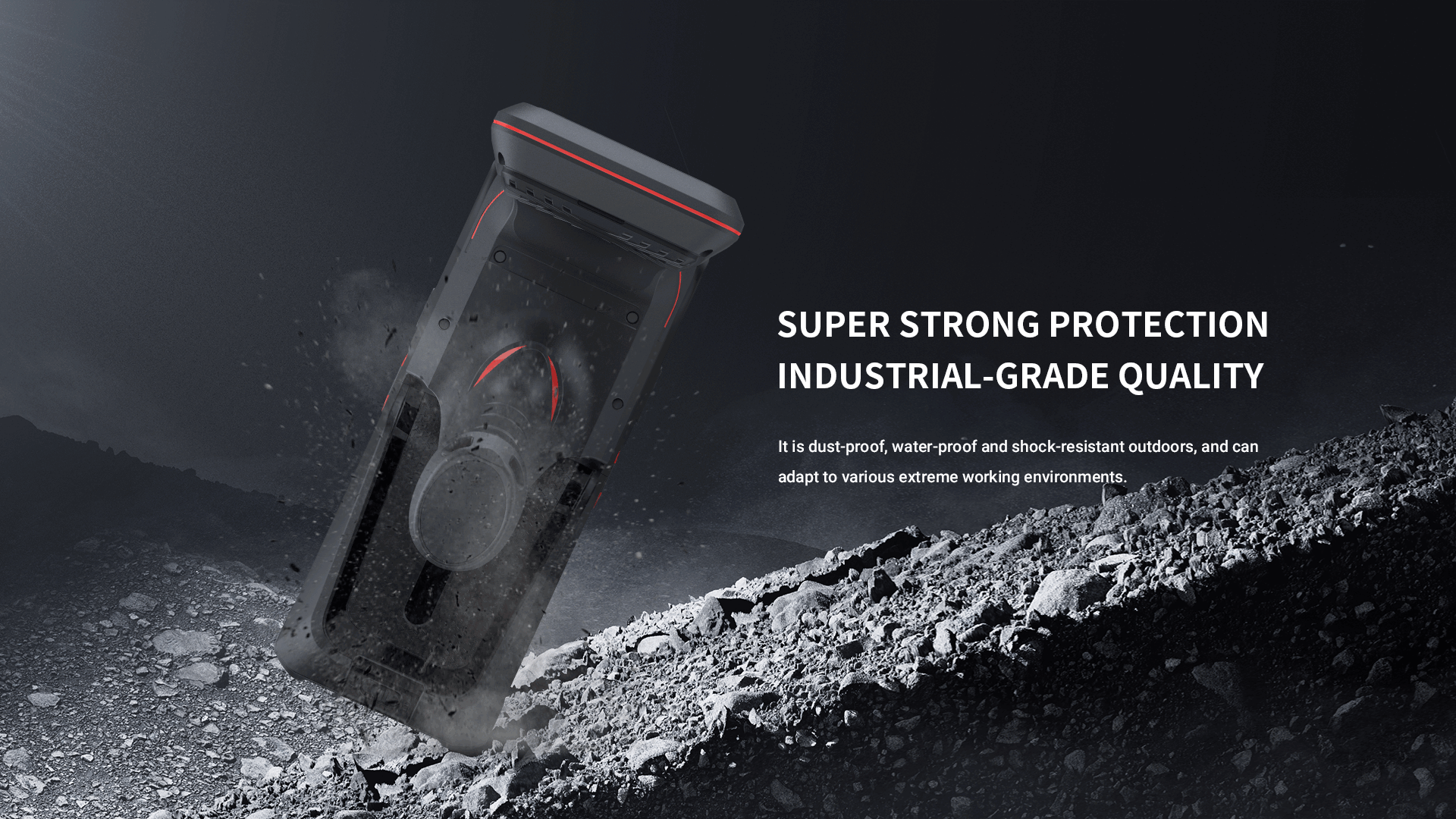

IP65,1.5m drop test
Optional configuration

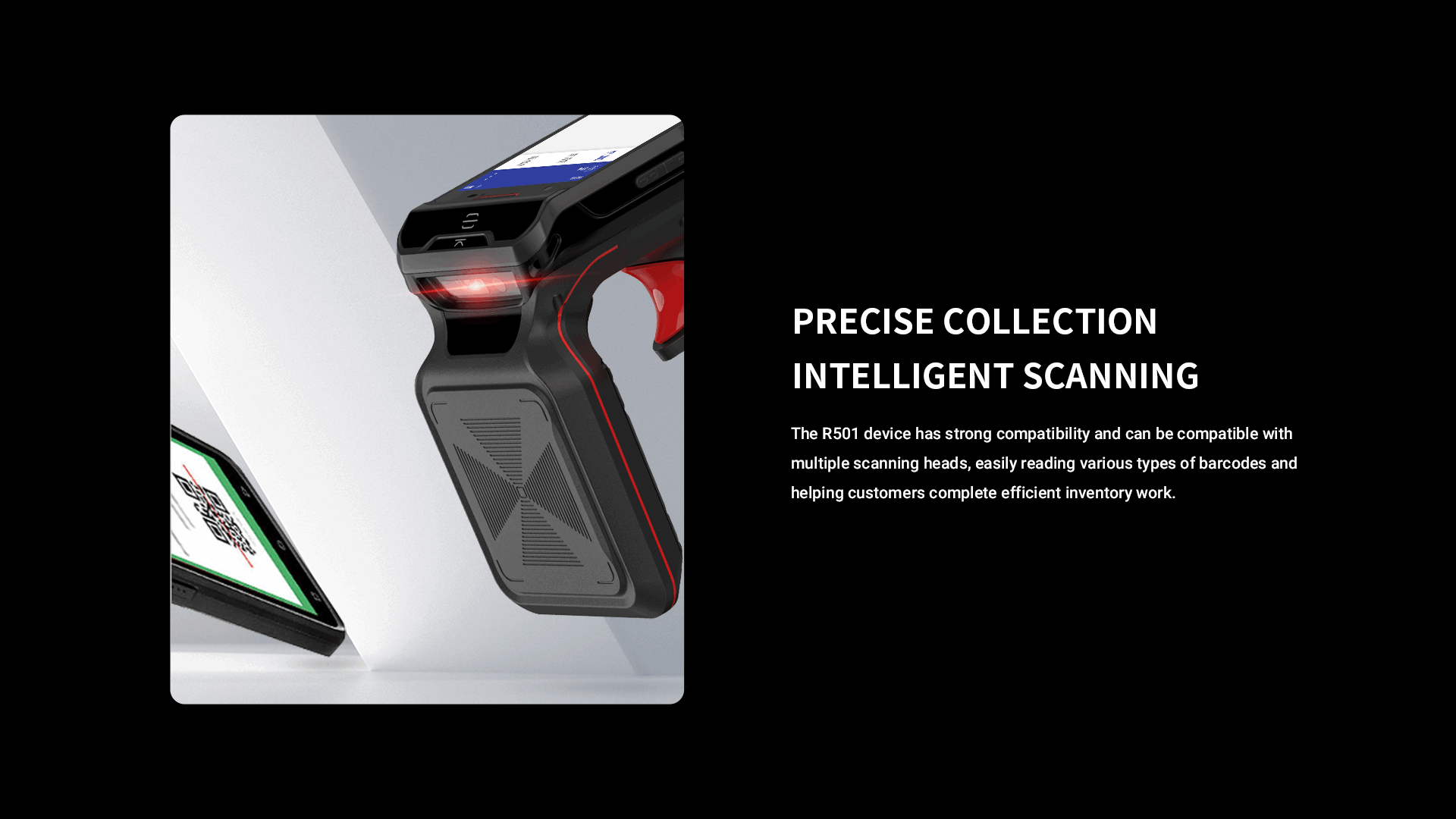

2D Scanner
Honeywell N6703 N5703 N6602-W2
NFC
13.56MHz, support ISO14443A/B 15693 protocol

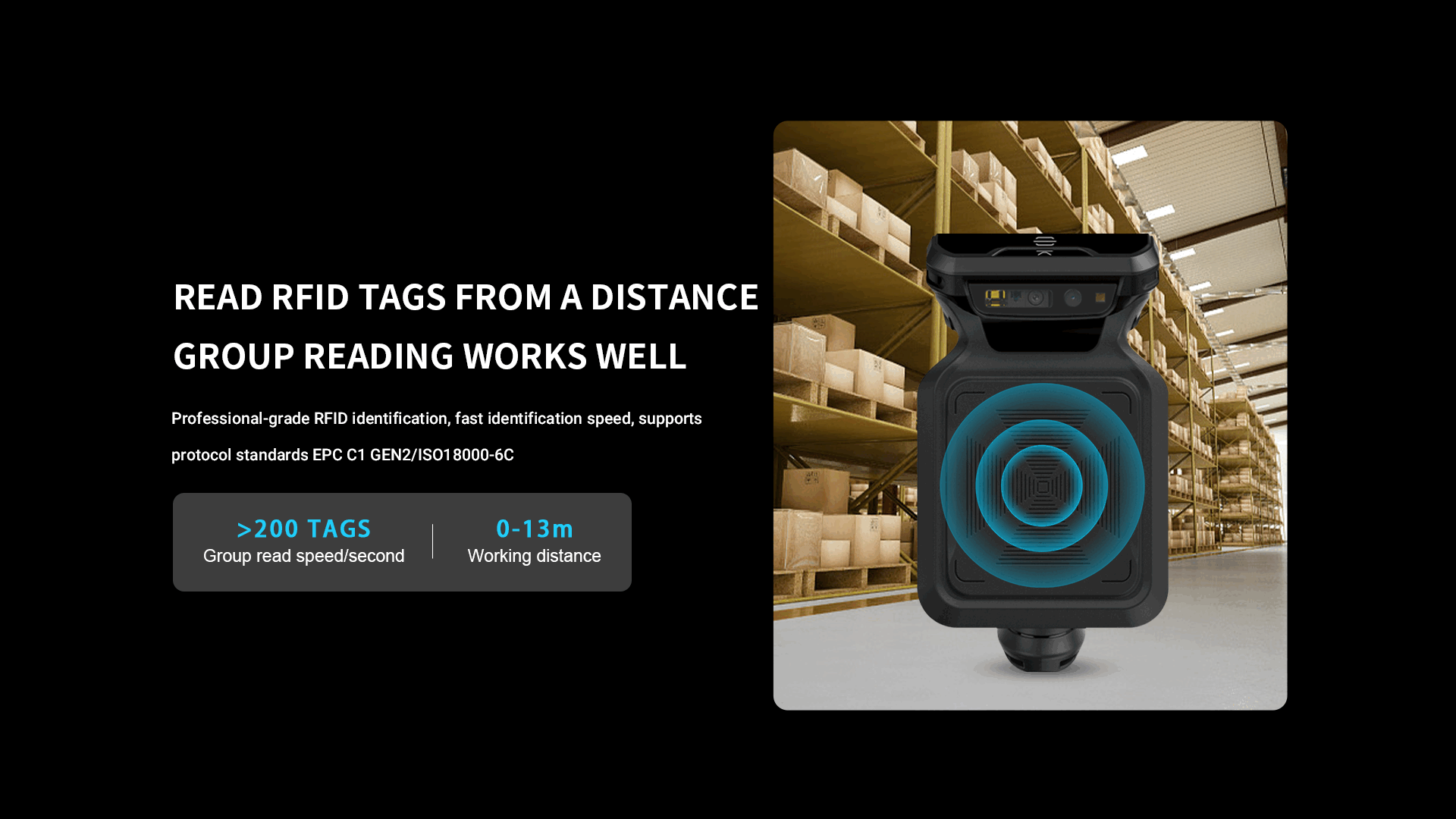

UHF
902-928MHz
EPC C1 GEN2/ISO18000-6C
Circularly polarized antenna (4.65dBi)
0-20m
>500 tags per second (circular polarization)
